Palletank for Mixing for LevMixer® and Magnetic Mixer®
Palletank for Mixing
The Palletank for Mixing is a stainless-steel container that’s designed to complement the Flexsafe® Pro Mixer bag and drive unit. The front doors allow easy installation of the mixing bag, and the front port gate facilitates tubing line and sensor installation, as well as manipulations during filling, sampling, and draining. Offering rapid set-up with a mixing bag already installed, users can quickly begin mixing operations in just a few minutes. Palletank for Mixing units are available with weighing functions and heat exchange jackets for integrated volume and temperature control.
From 50 L to 1000 L

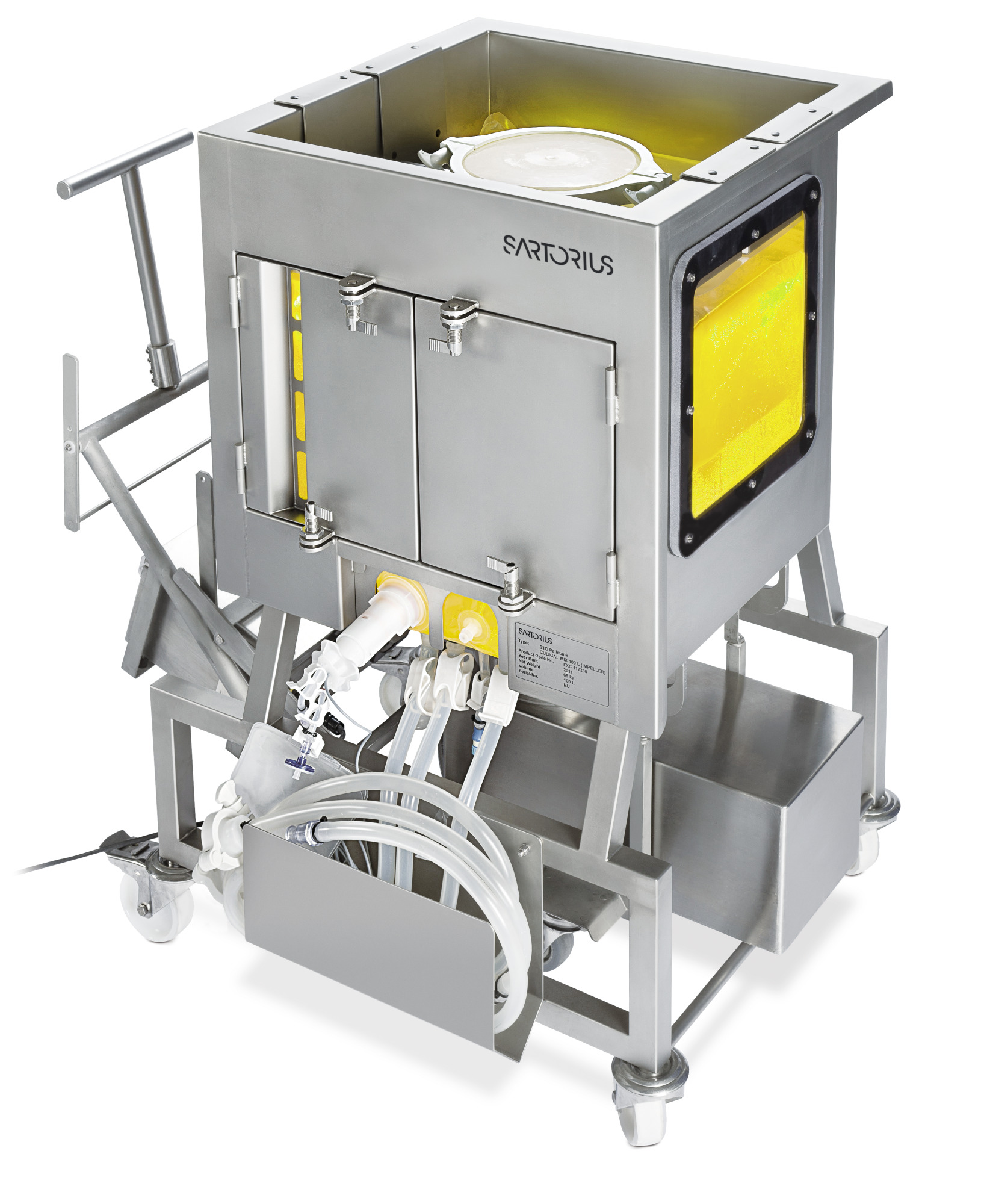

Cubical shape of Palletank for Mixing with windows on lateral sides enable the user to visually inspect the mixing process. The cubical shape facilitates the installation and offers scalability from 50 L to 1,000 L with improved mixing efficiency.
From 1500 L to 3000 L

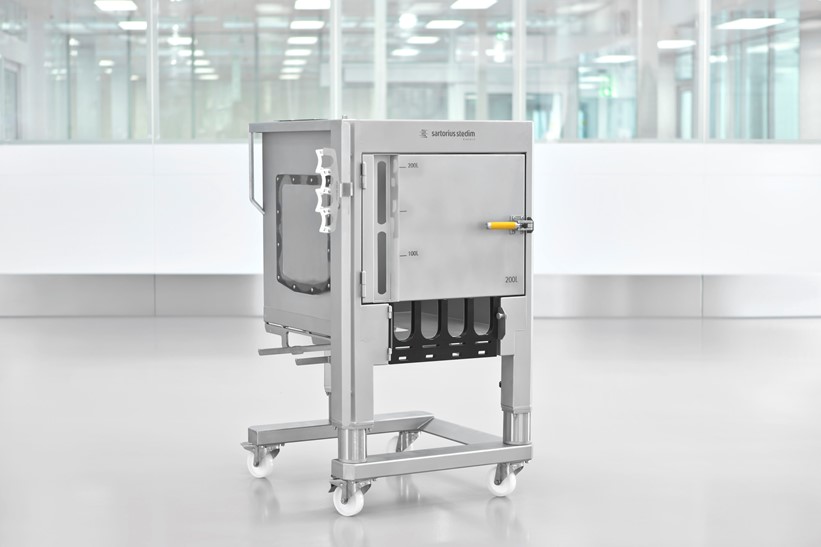

Large volume Palletank for Mixing is inspired from the well-proven design of Palletank for storage with a geometry to minimize footprint while providing the vortex required for rapid powder dissolution. A stainless steel cross mounted on a pulley system enables to unfold the Flexel® Bag for Magnetic Mixer for an easy filling and optimized draining. Large volume Palletank for Magnetic Mixer are now available in standard range with heat exchange jacket and | or integrated weighing system.
The Palletank for Mixing is also available standard either with a heat exchange jacket and | or with integrated loadcells and weight indicator:
- The Palletank for Mixing Jacketed is built according to ASME or PED directives. The heat exchange jacket and insulation system allows for efficient chilling, heating, cold or warm storage of biopharmaceutical fluids.
- The Palletank for Mixing and Weighing is configured with built-in load cells linked to the weighing indicator for fast and reliable volume measurement. The CAIS1 Combics 1 indicator allows strain gauge weighing and provides an easy-to-read user interface.
